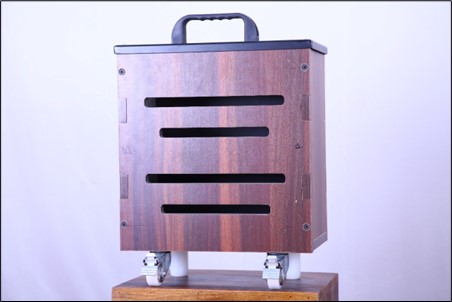

“Wood” Powa Buggy on Wheels

The dimensions of this model are:

Width – 386mm

Height – about 500mm (from floor to top of handle)

Depth – 221mm

wood powabuggy on wheels
how to use the powabuggy

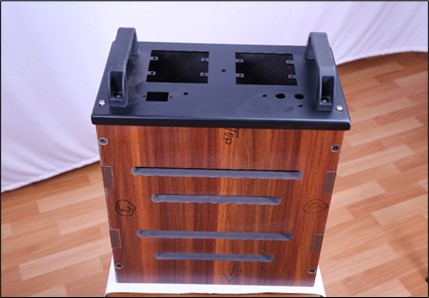

How to use the Powa Buggy:

The Powa Buggy is very easy to use, and it does not require any installation.

It comes with a power cord that is plugged into the kettle plug on the Powa Buggy and the other end is plugged into a wall outlet.

The appliances that you want on back-up power is plugged into the plugs shown in the previous photo.

In fact, the Powa Buggy is operated like a large plug extension box, which everyone knows quite well.

Technical Specifications

The Powa Buggy comes with a 100Ah/12V battery.

The Powa Buggy battery space available is:

  • Width – 375mm
  • Height – 250mm
  • Depth – 210mm

The following battery models are suitable for use with the Powa Buggy.  The battery technical data sheets are attached for ease of reference.

  1. Sealed lead acid.
  2. Nominal battery voltage – 12V.
  3. Battery capacity at 10-hour discharge rate – 100Ah.
  4. Weight – about 27kg
  5. Maximum available energy capacity is approximately 1200Wh at the above ratings.
  1. Lead acid with calcium alloy grids and plates.
  2. Nominal battery voltage – 12V.
  3. Weight – about 26kg.
  4. Battery capacity at 10-hour discharge rate – 100Ah.
  1. LiFePO4 (lithium Iron Phosphate).
  2. Nominal battery voltage – 13V / Operating range 11.6V to 14.4).
  3. Weight – about 14kg.
  4. Maximum available energy capacity is approximately 1400Wh at the 10-hour discharge time.
  1. 4A at 230V, which is 1000W or 1kW.
  2. Input voltage – 10V minimum to 14V.
  3. Inverter full power at 10V.
  4. Maximum input current – 100A at battery voltage of 10V.

Features:

The Powa Buggy includes an inverter, battery charger and solar regulator. The battery is charged from either PV panels via the solar regulator or from the mains using the battery charger. When the mains power fails, the Powa Buggy switches over to the batteries and supplies the loads via the inverter.

The inverter is programmed to switch off at the minimum battery voltage to prevent the battery from over discharging. The battery charger and the Solar regulator charges the battery in accordance with the battery charge specifications supplied by the battery manufacturer. The inverter has built in short circuit protection.

The solar regulator and battery charger includes over current and short circuit protection. Over temperature protection is included for the inverter, solar regulator, and battery charger.

The Powa Buggy works with any PV panel, but the best performance is with a PV panel between 200W and 300W.  The battery charging can be improved under cloudy conditions by adding more PV panels.

The PV panels are connected in series, and a maximum of four panels of maximum 300W each can be connected to the Powa Buggy.

Single panels with power ratings higher than 400W can be used up to 500W.  Two of the 400W or 500W PV panels can be connected in series.

Other Products

wood powa buggy with handles

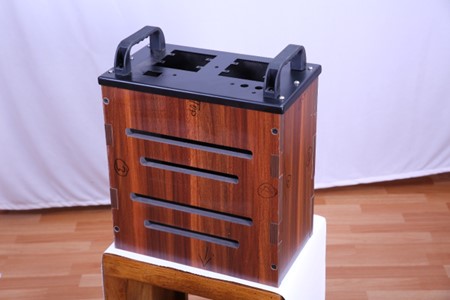

“Wood” Powa Buggy with handles

The dimensions of this model are:

Width – 386mm

Height – 441mm

Depth – 221mm

Explore
Metal powa buggy with wheels

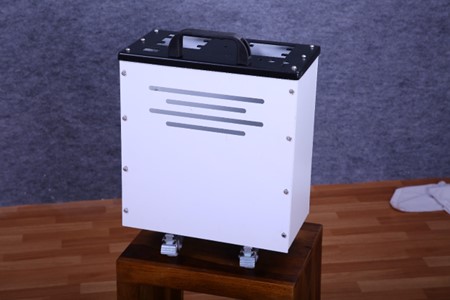

Metal Powa Buggy with wheels

The dimensions of this model are:

Width – 386mm

Height – about 500mm (from floor to top of handle)

Depth – 221mm

Explore
metal powa buggy with handles

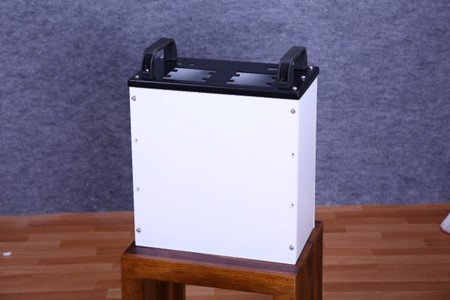

Metal Powa Buggy with handles
